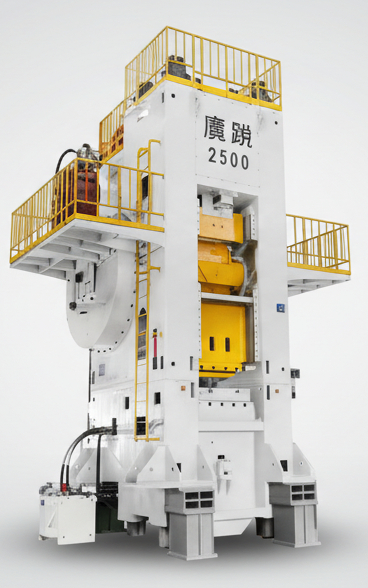

Knuckle Joint Press

REQUEST OFFER

Specification		Unit	GK-400	GK-630	GK-800	GK-1000	GK-1200	GK-1600	GK-2500
Nominal force			4000	6300	8000	10000	12000	16000	25000
Rated tonnage point			6	8	10	10	10	10	10
Stroke length			160	160	180	200	250	250	250
Strokes per minute	Continuous	SPM	40	35	35	25~30	25~30	25~30	25~30
	Intermittent	SPM	16	12	12	12	12	12	10
Max. die height			500	550	600	600	600	600	600
Die height adjustment (indicated value 0.01)			15	15	15	15	15	15	20
Bolster area	LR		650	700	900	1000	1000	1000	1200
	FB		650	700	900	1000	1000	1100	1200
Slide area	LR		450	540	800	850	850	850	1000
	FB		500	540	800	900	900	900	1000
Side opening	LR		400	400	400	600	600	600	600
	H		500	500	500	600	600	600	600
Power of main motor			30	45	55	75	75	110	160
Adjusting motor power			2.2	2.2	3	3	3	3	5
Upper ejector force (mechanical)			100	100	100	100	100	100	100
Upper ejector	stroke		40	40	40	40	40	40	40
Lower ejector stroke (mechanical)			200	200	400	400	500	500	600
Lower ejector	force		60	60	80	80	110	110	110
Net weight (Approx.)		Ton	25	35	65	85	98	135	228
Air pressure
Remarks: Specifications are subject to change without notice.

Pneumatic Wet Integral Friction Clutch Brake (6300 KN and below)
Frequency Converter Speed Regulator (6300KN and above)
Pneumatic dry split friction clutch brake (8000 KN and above)
Slide and Die Balancing Device
Electric die closure height adjustment device (with oil-pressure locking device) Circulating centralized thin oil lubrication system
Lower Ejector device
Electronic rotary cam switch
Digital Die Height Indicator (0.01mm) Centralized operating panel (with indicator light)
Height Indicator Light(8000KN and above)
Misfeed detection
Touch screen
Flywheel Brake (10000KN and above)
Programmable Controller
Mobile T-type console Coupling for air source
Coupling for air blowing Preset Counter
Operating Instructions and Accuracy Checklist
Main motor reversing device Foundation bolts
6 Digits Counter
