Sailent Features:

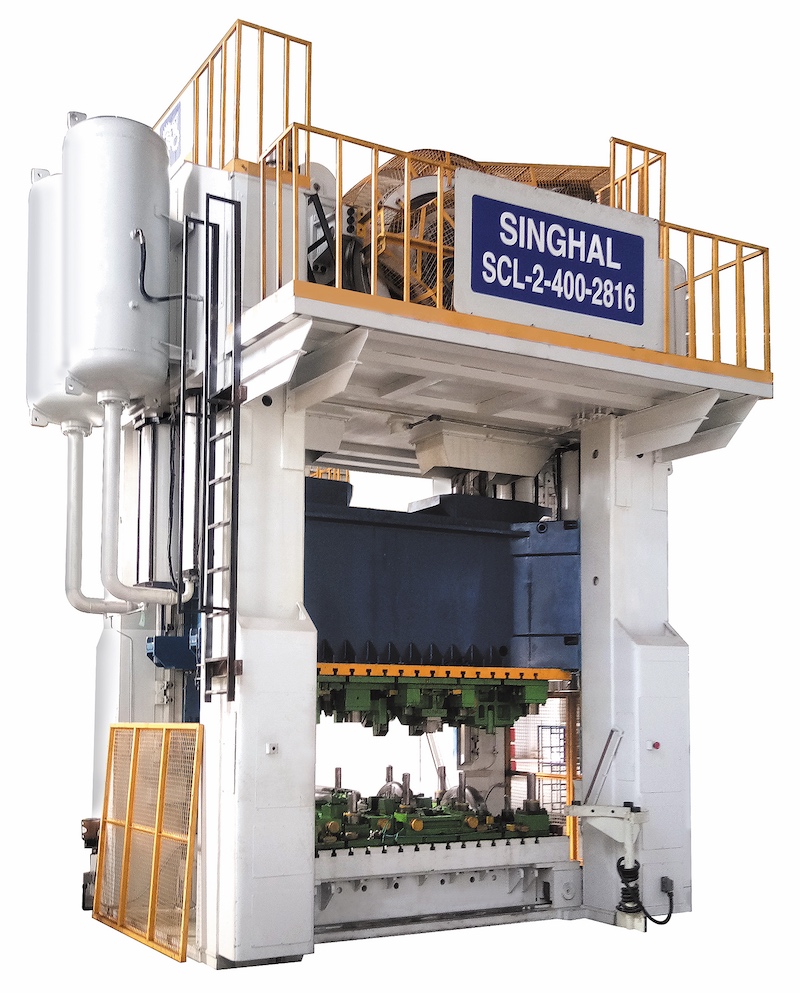

The SEW-SCLM & SCLH Series Presses are dedicated to for requirement of higher stroke length for various operations presses and ensure product quality equivalent to conventional presses.

As SEW’s consistent efforts to develop progressive technology and aim to value added features to higher productivity then conventional press operations i.e. blanking, bending and shallow drawing for precision stamping for very precise and costly parts.

Frame structure is robust and symmetrical in both the directions to improve dynamic accuracy and to withstand the progressive stamping of thick sheet metal.

Amply dimensioned balancers reduce vibration and enable stable high-speed production.

Wider range of press capacities; from 315 ton to 800 ton to suit every progressive forming components. Customised presses with higher pressure capacities can also be offered.

Four Piece Constructed Rigid Frame

SCLM & SCL Series Press frame built with Four Piece Construction is hydraulically pre-stressed by tie rods and nuts to ensure maximum rigidity during high precision progressive forming.

8 Point Long Guiding

SCL Series constructed with 8 Point Long Guiding and wide design suspension points will provide exceptional resistance to off-centre load. Highly precise machining of matching components during construction of press with use of Sintered Bronze Liners which ensures reduction of slide guide clearance. Slide guiding forced recirculating oil lubrication prevent ware and overheat as well as telescoping covers to protect against contamination.

Eccentric Drive

SCL Series Eccentric Drive enormously suitable for operations such as Cutting, Bending, Punching, Shallow Forming & stamping operations.

Link Drive Mechanism

SCL Series Link drive velocity of Slide during the forming parts of the stroke is slower than conventional press which ensures increased forming time and reduce shock to the tool. As an outcome it will extend tool life and provide precise quality of forming in components. The SCL Series develop with Link Motion drive which reduce forming velocity has predominantly increase quality of products, reduce noise, vibration and ensure higher productivity and longer tool life.

Ball seat designed for minimum total Clearance

SCL Series presses are designed with PB2 ball seat which ensure too small clearance confirming to JIS standard Class1. This lower clearance enhanced tool life, reduce noise, product accuracy.

Sophisticated and Easy to use Touch Screen Control Panel

Touch Screen HMI with Mitsubishi FX-5U PLC with Ethernet port and Encoder base E-CAMS gives experience of ease of press operation, alerts, tool data storage, and crank angle indicator.

Control panel is floor mounted to ease operator’s manoeuvrability
