Sailent Features:

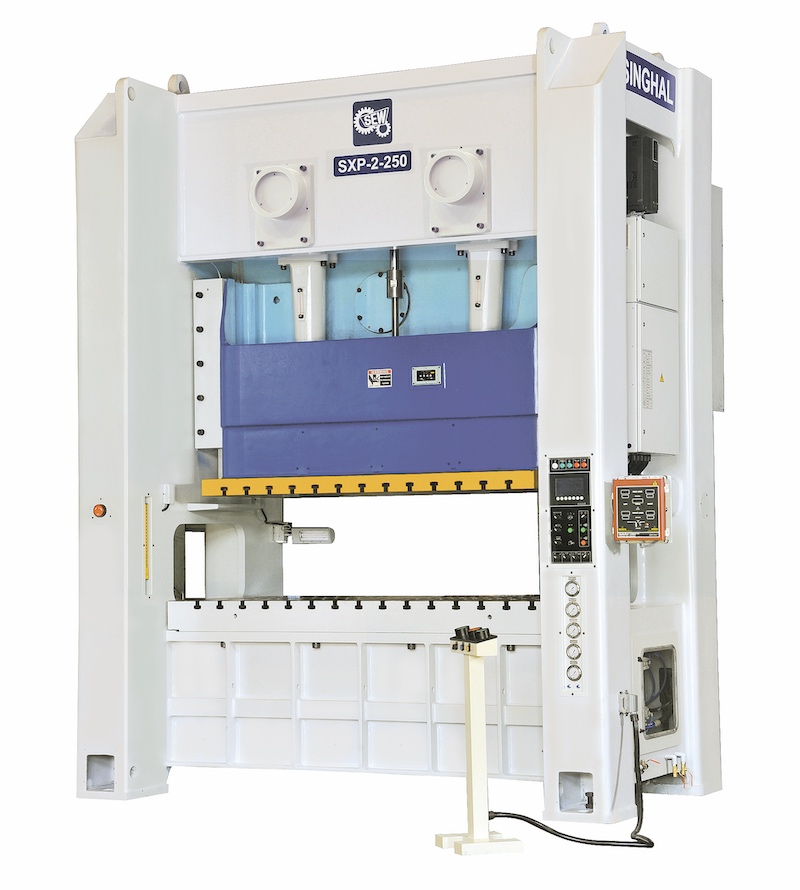

The SEW SXP-2 Point Series presses are standard machines with a modular design and a comprehensive selection of standard equipment for stamping conventional sheet metal parts from coils.

In the 200 T to 630 range they are the perfect solution for manufacturing high-quality parts cost-effectively and with a high output rate.

1. The frame of the Monoblock machines is made from welded, stress relief steel. This gives it the necessary rigidity, which, together with the very low level of bed deflection, ensures that the parts are highly accurate and the dies have a long service life
2. The transverse shafts turning in opposite directions compensate for the lateral rotation forces
3. The long eight-fold guide system for the slide effectively absorbs the eccentric forces
4. Two Point machines are ideal for continuous running fully interlocked with automatic feeding, especially when blanking, piercing at high speed where tonnage is required near bottom of stroke.
5. Hydraulic Overload System located under the Ball Screw Seating in order to prevent a major overload.
6. Hydraulically operated fast acting mechanism mounted under each suspension, senses the application of load beyond capacity of each suspension and thereby prevents damage to press, tool and components by swift response.
7. The pneumatic counterbalance system ensures that all the drive components and bearings have a long service life.
8. High performance, low inertia combined friction clutch and brake units allows a fast signal stroking rate with the minimum of heat built-up.
9. Pneumatic Slide Balance to guarantee smoothness of operation and extended die and bearing life at all speeds.
10. Ergonomically designed to occupy the minimum of floor space.
11. High eccentric load bearing capabilities due to wide space between suspension points, extra rigidity and long slide height helps in producing asymmetrical parts.
12. Two point’s presses are easy to interface with various automation equipment like Servo Feeder, 2-in-1 Decoiler, 3-in1 Automation Line.
13. Hydraulic tool clamping and a Quick Tool Change carriage can be fitted to provide 'Just-In-Time' benefits.
14. Massive press construction utilizing quality materials and generous bearing surfaces guarantee minimum deflection and longer die life.
15. Touch Screen HMI with Mitsubishi FX-5U PLC with Ethernet port and Encoder base E-CAMS gives experience of ease of press operation, alerts, tool data storage, and crank angle indicator. Control panel is floor mounted to ease operator’s maneuverability and flexibility in lay out.

Engineered for Precision. Built for Performance. Trusted for Durability.

1. Precision-Crafted Main Crankshaft

Meticulously ground main crankshaft ensures superior alignment, vibration-free movement, and consistent high-accuracy operation—forming the foundation of unmatched press reliability.

1. Keyless Coupling Technology

Fitted with state-of-the-art keyless couplings on both the clutch and backshafts, delivering enhanced transmission reliability, effortless maintenance, and extended operational life.

1. Intelligent, Fool-Proof Safety Architecture

Powered by a robust Mitsubishi FX-5U PLC and a 7.2” TFT touchscreen HMI, the system integrates:

• Advanced diagnostics via fault-finding HMI
• Crank angle indicator with programmable tool data storage
• Error-proof PLC logic ensuring uncompromised operator safety

1. Excellence in Gear Manufacturing

• All gears undergo high-precision grinding with in-house WMW Gear Grinding Machines
• Hardened Backshafts with ground teeth, verified on Hofler Gear Lead & Profile Testers for perfection in meshing and load distribution

1. Enhanced Durability through Lapping Technology

The ball seat and pitman screw undergo precision lapping, significantly increasing contact area—ensuring smoother motion, reduced wear, and extended lifespan.

1. High-Precision Six-Point Gibs

Fitted with sintered bronze liners for optimal guideway alignment—guaranteeing press stability, longevity, and unmatched repeatability over years of operation.

1. World-Class Machining Infrastructure

Manufactured using globally recognized precision machines from SNK, SKODA, DOOSAN, PAMA, ASQUITH, WOTAN, and WMW. Our in-house CNCs, HBM, VTLs, VMCs, and gear grinding/testing setups support up to 5-meter single-job operations.

1. Encoder-Controlled Digital Systems (ECAMS)

Incorporates ECAMS for precise crank angle monitoring, smart tool data storage, and seamless integration with programmable digital feedback systems.

1. Comprehensive Multi-layered Safety Features

• Top Stop Safety: Automatically halts the press at TDC post-stroke
• 120° Inching Mode: Allows safe testing of die during stroke from 0° to 120°
• Top Start Protection: Engages the press only within a safe ±20° window from TDC
• Hard Logic Safety: Relay-based NO & NC cam logic for redundant safety
• Overrun Protection: Cuts off operations if the press overshoots the TDC by 5°–10°
• Anti-Repeat Safeguard: Time-based safety halts operation near TDC in case of signal failure
