- Description
- Specification
Sailent Features:
Aida Engineering Link Co., Ltd. (Japan)
Manufacturing Standard
Labor Examination (1991.12)
Registration No. K 249
Serial Number 10511-1391
Year of Manufacture March 1992
Country of Origin Japan
Condition Used – Fully Reconditioned / As-Is (as applicable)
Key Highlights

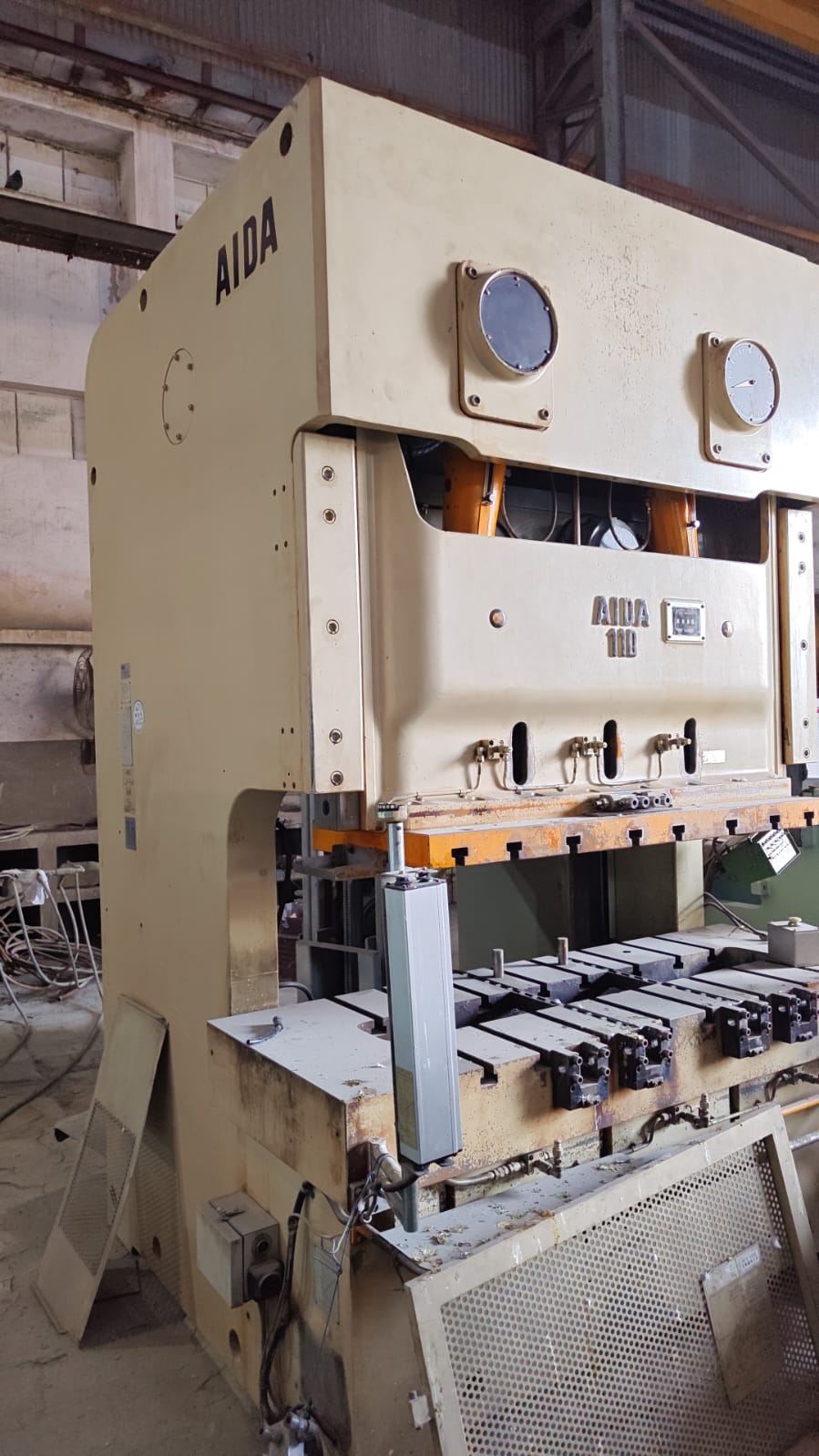

- Heavy-duty AIDA NC Series press known for precision, rigidity, and long service life
- Suitable for high-accuracy stamping, progressive dies, and continuous production
- Stable operation with controlled slide motion and reliable stopping performance
- Ideal for automotive, electrical, and sheet metal component manufacturing
Note: Detailed inspection report, trial video, and refurbishment scope can be shared on request.
For price, availability, and technical consultation, please contact our sales team.est 1
| Parameter | Specification |
|---|---|
| Press Type | Mechanical Power Press |
| Capacity | 110 Ton |
| Stroke Length | 180 mm |
| Strokes Per Minute (SPM) | 35 – 65 spm |
| Die Height | 350 mm |
| Slide Adjustment | 90 mm |
| Main Motor Power | 11 kW |
| Supply Air Pressure | 5 kgf/cm² |
| Maximum Upper Suspension Capacity | 550 kgf |
| Control System | NC (Numerical Control) |
| Sudden Stop Time | 190 ms |
| Stop Time – NC Harden Operation | 190 ms |
| Stop Time – Ray Type | 210 ms |
| Overrun Monitoring Device Setting | 12 ± 3° |
| Manufacturer | Aida Engineering Link Co., Ltd. (Japan) |
| Manufacturing Standard | Labor Examination (1991.12) |
